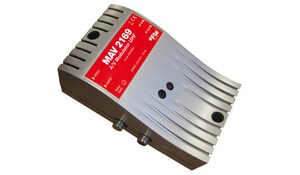

MAV 2169

Code

6000654

Description

PLL modulator

Output frequency band

UHF

Channels

C21 - C69

Output level

80 ±2 dBuV

Modulation standards

PAL G, PAL K and SECAM L

Modulation type

DBL - MONO

Frequency range RF IN

 47 - 862 MHz

Insertion loss RF

 < 1 dB

Audio/Video relation

12 dB

Connectors A/V inputs

RCA female

Connectors RF IN/OUT

F female

Feeding

230 VAC / 50 Hz

Consumption

3 W
